Close type centrifugal pump

Close type centrifugal pump


    Material: Motor housing:Cold rolled stainless steel plate Investment casting impeller:AISI 304/316L Contact parts with material:Viton、EPDM Gasket:SSC-Sic/EPDM Internal surface:Ra≤0.8um External surface:mirror polish



Our centrifugal pump is a sanitary pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries.

Some of its uses include processes in the brewing, dairy and beverage industries , and with the appropriate options it can also be used in complex applications such as
evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.

Housed inside the casing, the impeller rotates in conjunction with the pump shaft .With this arrangement, the impeller blades convey energy to the fluid in the form of
kinetic energy and pressure energy.
Due to the special design of the pump casing and impeller ,the BOGP centrifugal pump has much higher pressure than standard centrifugal pump.

Features:

High efficiency
Low maintenance
Transfer the liquid softly
Complete CIP ability
Low NPSH (net positive suction head)
Long service seal
Reliability and durability
Easy to replace the mechanical seals
Motor:0.55-22Kw
Impeller             :Open type
Rotating speed:2900rpm(50Hz)or 3600rpm(60Hz)
Flow:1.5-120㎥/h
Lift:0-75m
MAX pressure:7Bar
MAX temperature:120℃/248℉
Connection:Clamp、Thread、Flange、Welding
Standard:DIN、SMS、3A、ISO、IDF、RJT

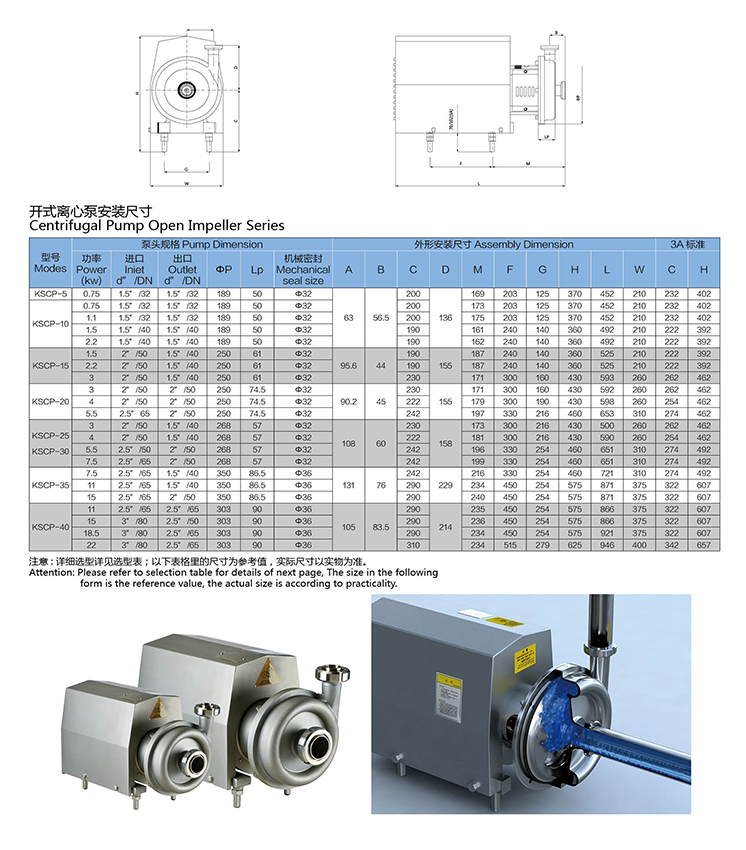

We have open impeller and close impeller types. And according to customers’ requirements, we design movable type and explosion type.
Design and Standard:
Design based on 3A hygienic standard
Adjustable stainless steel leg

Mechanical seal:single mechanical seal and double mechanical seal
