Sanitary pressure relieve valve with scale and lock

Sanitary pressure relieve valve with scale and lock


    Sanitary safety valve, sanitary release valve, sanitary relief valve

Sanitary pressure relieve valve with scale and lock

The safety valve is used to used to keep the set pressure in the system. When the system pressure is higher than set pressure, valve open to reduce the pressure.
Before the valve is dispatched, we have set the pressure to given pressure. The valve is closed.
If needed, we can install a pressure gauge before the inlet of safety valve.
Features:

Simple structure
Attractive appearance
Quick pressure adjustment
Convenient maintainance
Adjustable pressure range
The valves can not be installed in reversal direction
Models: Ball type, line type
Max. Pressure: 10bar
Min. Pressure: 0Bar
Adjusting pressure: 0.5bar/unit

Connection end: welded,clamped , threaded, union type

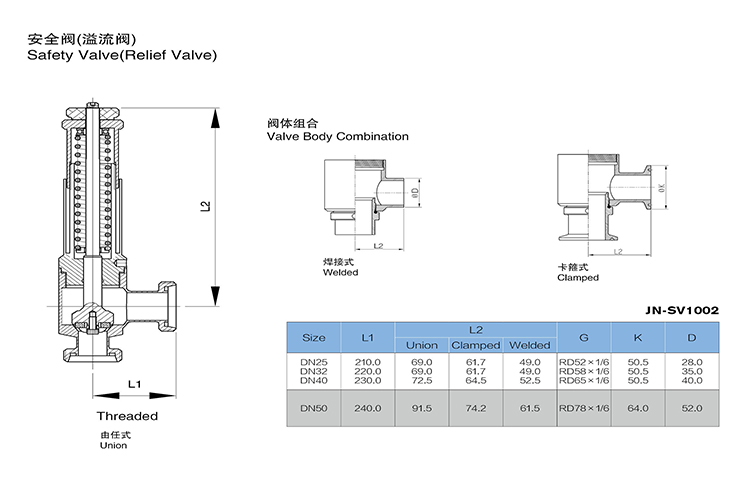

Size: 1”-2”, DN25-DN50
Material: SS304, SS316L
Surface finish: Sand blasting type, or mirror type
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
