Sanitary Line type 30 T way shutoff valve

Sanitary Line type 30 T way shutoff valve


    Sanitary shut-off valve, sanitary diverter valve, sanitary seat valve, sanitary divert seat valve, sanitary diversion valve, sanitary conveying valve, sanitary single seat valve

Sanitary Line type 30 T way shutoff valve

Flow diversion valve
Stainless steel shutoff / flow diversion valve
The valve is used to stop the liquid or change the flow direction in the system.
Features:

Open support bracket which separates the actuator and valve body, the design makes shaft seal checking easily
Spherical valve body assures ideal fluidity
Dealing material softly
Ultra-thick spherical design avoid the deshape caused from heating stress
All the contacting parts can be cleaned together or alone
Temperature: -10 degree to 120 degree
High precise casting body
Pressure: 10bar
Working mode: Manual, pneumatic type
Gasket: EPDM, silicone
Easy cleaning , easy maintenance

Valve body type: 20, 30, 21, 22, 31, 32 type
Connection mode: Clamped, welded, etc

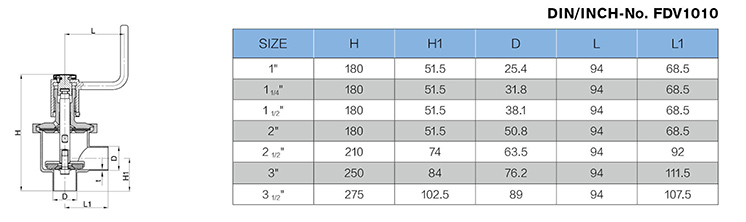

Specification: 1"-4", DN25-DN100
Material quality: SUS304, SUS316L
Surface: Mirror polishing, or sand blasting type

inner surface: 0.4Ra
Outer surface : 0.8Ra
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
