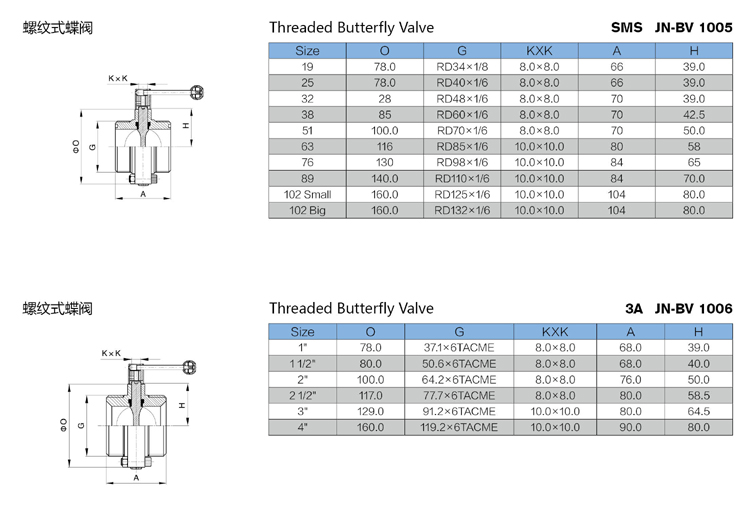

Sanitary plastic gripper threaded butterfly valve

Sanitary plastic gripper threaded butterfly valve


    Sanitary butterfly valve, sanitary union connection butterfly valve, hygienic butterfly valve, hygienic valve, sanitary valve

Sanitary plastic gripper threaded butterfly valve

Manual Butterfly valve
Stainless Steel Sanitary Manual Butterfly Valve
Features:

Better acid proof, alkali proof and high temperature
Temperature: -10degree~~120 degree
More than thirty thousand safety test
Outside surface finish: Ra 1.2
Special gasket design,  fluid free of residue
Valve disc is made from forging.
Valve body is made from forging.

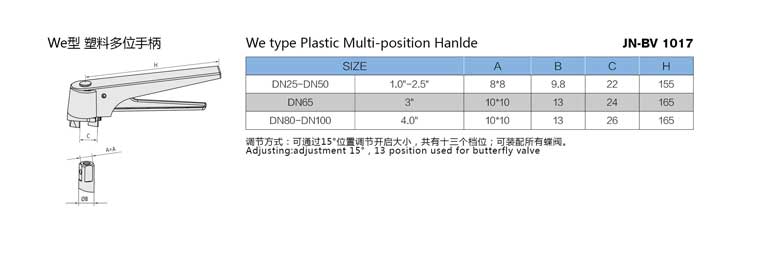

Manual handle: pull handle, plastic gripper handle or stainless steel gripper handle
Gasket: EPDM, silicone or Viton
All gaskets are FDA approved
Max. Pressure: 16BAR for welding connections; 10BAR for other connections
Min. Pressure:0.2BAR
Compact design, easy maintenance and high torque

Connection end: Weld, tri-clamped, union, flange,male threading, female threading
Standard: DIN, SMS, ISO, 3A, IDF
Material: SS304, SS316L
Inside surface finish: Ra0.4
Size: DN20-DN300 ,  3/4"-10"
Standard : pull handle normally with 3position ( 4position can be customerized )
 Gripper handle normally with 13 position.

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
